Impact Condo & Commercial Products
ES-CS1325
Hurricane Resistant

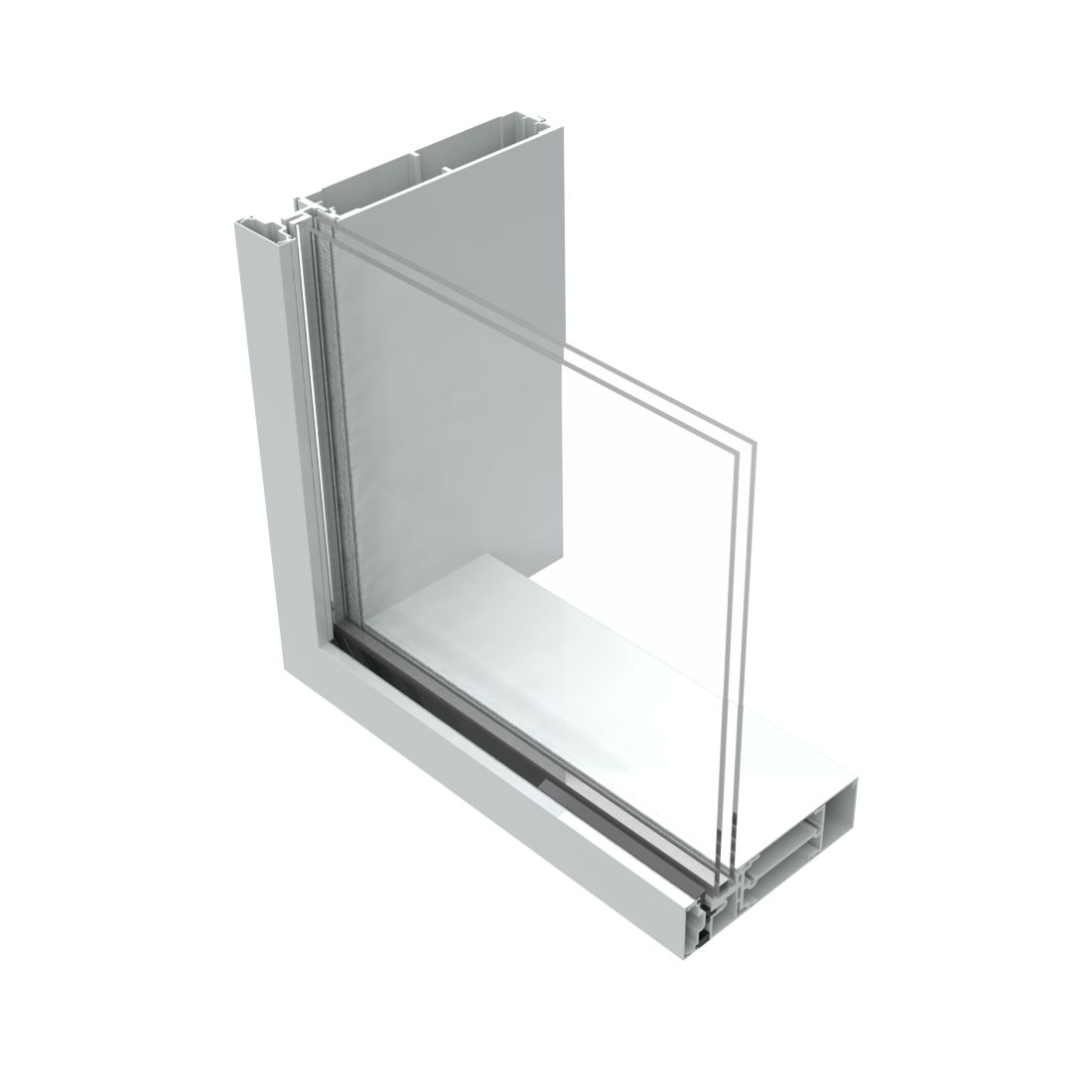

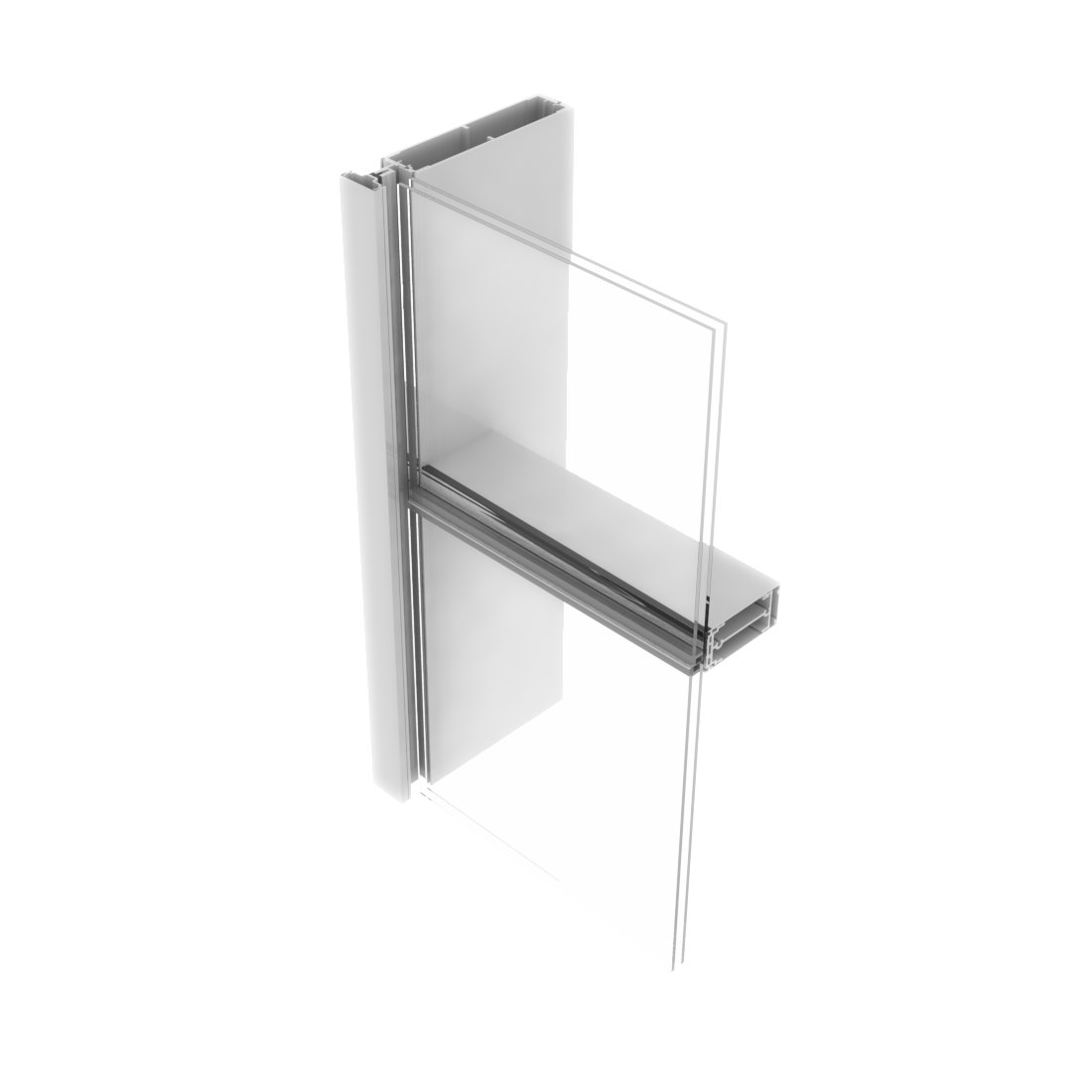

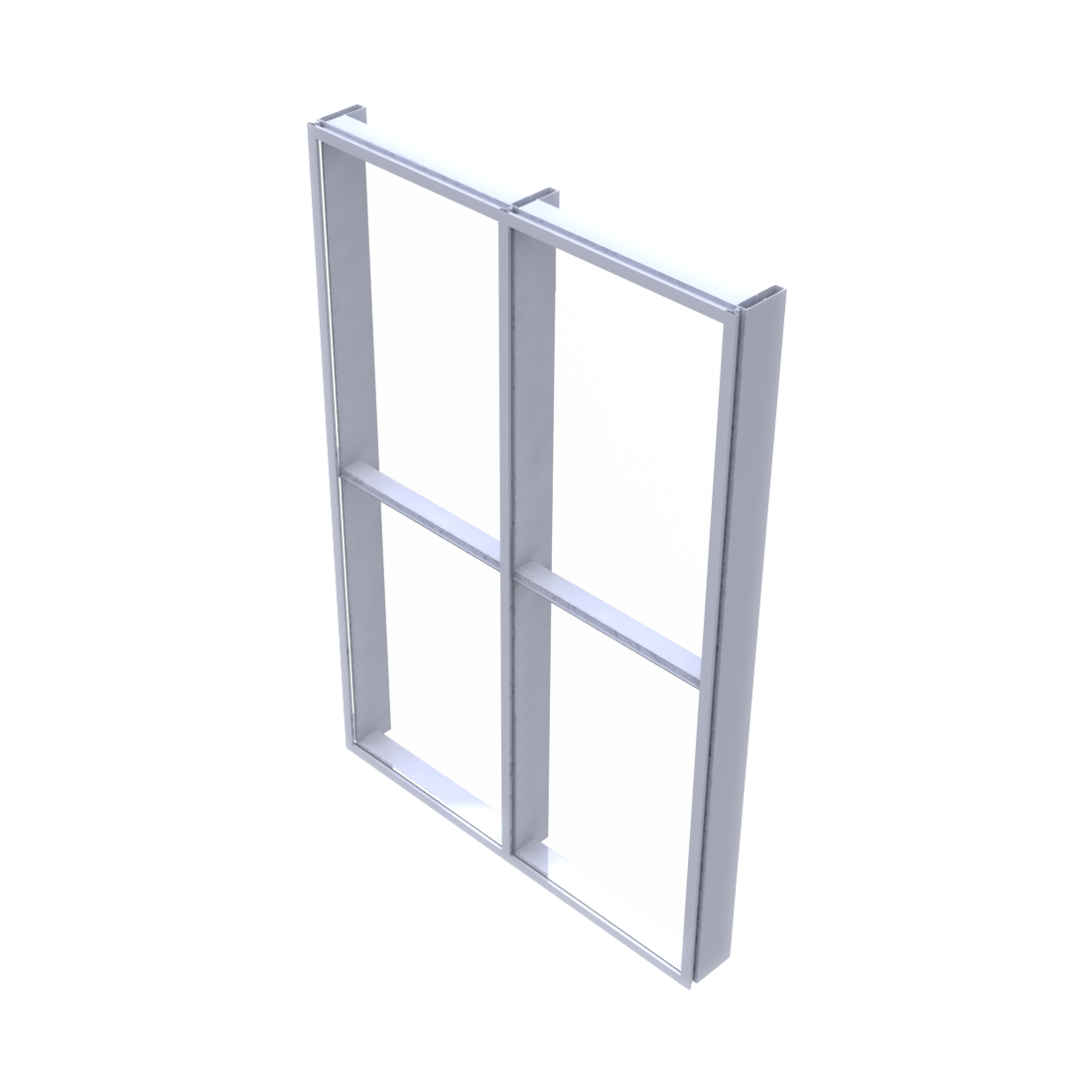

The ES-CS1325 is a stick-type facade system in which the frames, mullions and glass are installed and interconnected piece by piece on site. The use of EPDM isolated gaskets makes it a thermally improved system with superior structural qualities.
Designed for the USA market
System Description:
- Frame depth: 13”.
- Sightline frame: 2.5”.
- Designed for 1 5/16” insulating laminated glass and 9/16” laminated glass.
- Design load: +125/-125 psf.
- Water infiltration: 23.75 psf.
- U-value: 0.40.
Features:
- Anodized, painted or wood grain finishes available.
- Can be combined with other systems, projecting doors and windows.
- EPDM isolator gasket.
- 90° outside corner available.
- Outside glazed.
- Assembled on site.
